3X360 Red line laser level, RBP5, Case and bracket 5114127 Description
Lighten your tool-belt with the 3x360 red laser levels. These versatile tools combine all the best qualities of your favorite PLS gear, now with best-in-class accuracy and new features such as a rechargeable battery pack with charging adapter and a pendulum lock for added protection during transportation.
3X360 Red line laser level, RBP5, Case and bracket 5114127 Features
- 3X360 Red Laser Level
- For easy Plumb, Level and Square alignment
- 1m drop tested

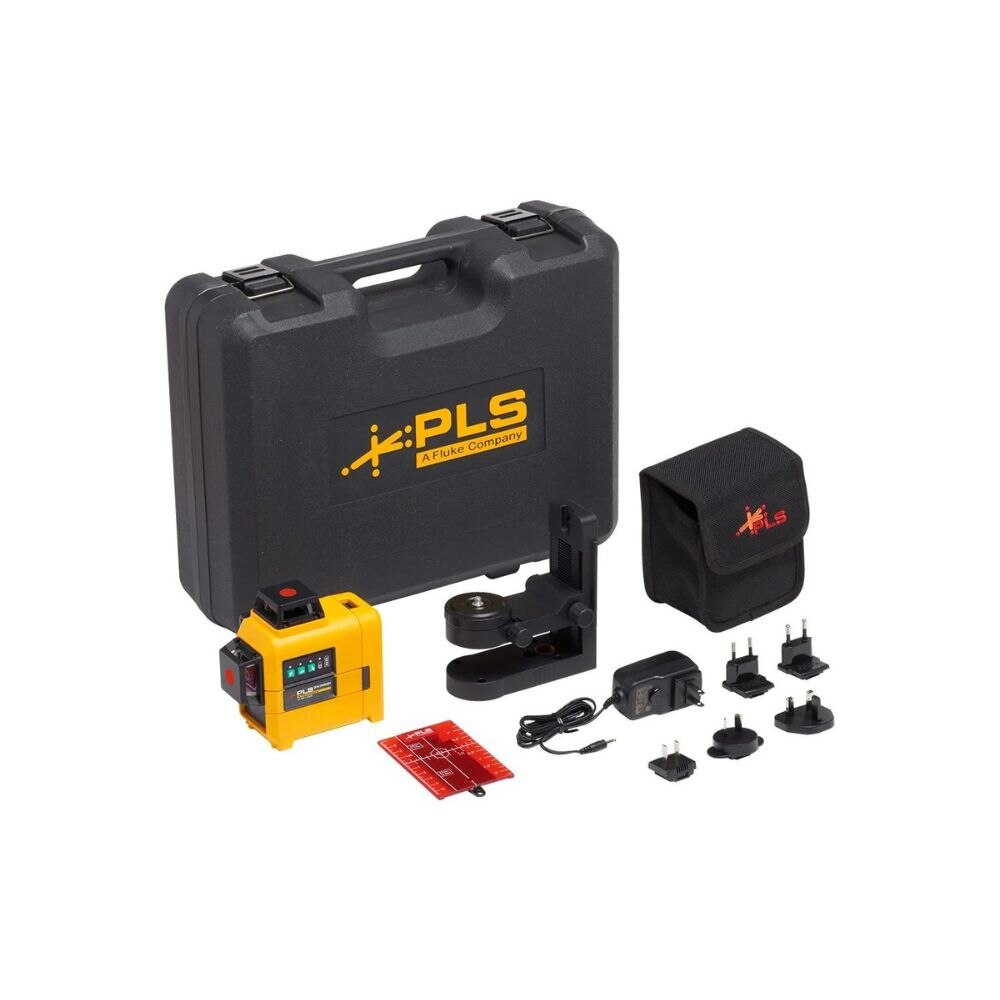

3X360 Red line laser level, RBP5, Case and bracket 5114127 Includes
- 3X360R Tool
- RBP5 (Li-Ion)
- Power Supply
- 3X360 Magnetic L-Bracket
- Red Reflective Target
- Canvas Pouch
- Blow Mold Case
| Specifications | |
| Battery | Lithium-Ion, 3.6V, 5200 mh (RBP5) |
| Battery Life, Continuous Use | 3 beams: ≥ 9 hours; 1 beam: ≤ 30 hours |

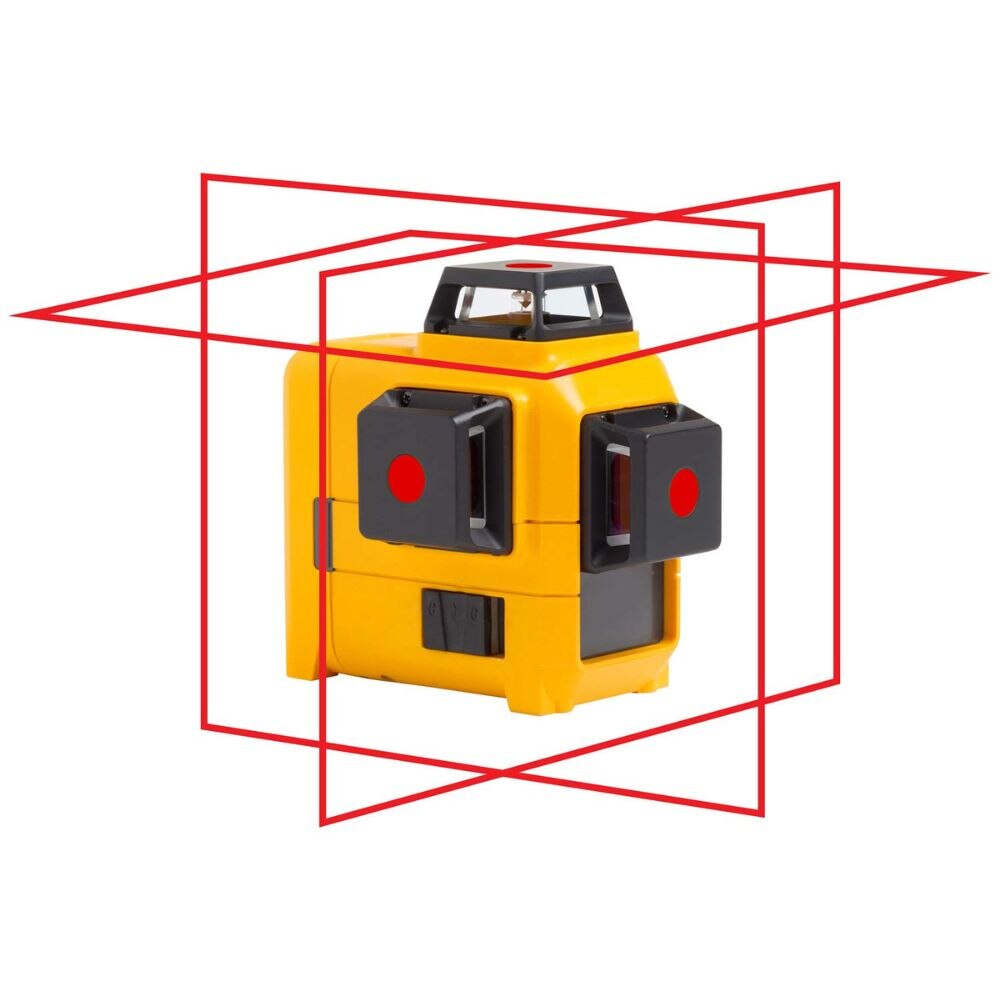

| Line Fan Angle | |
| Horizontal | 360° |
| Vertical | 360° |
| Side Vertical | 360° |
| Working Range | |
| Without Line Detector | 20 m (65 ft.) |
| With Line Detector | 50 m (165 ft.) |
| Laser Leveling | |
| System | Automatic, Pendulum |
| Range | Self-leveling: ≤ 4°; Out of self-levelling: > 6° |
| Temperature | |
| Operating | -10 °C to 50 °C (14 °F to 122 °F) |
| Storage | |
| With Batteries | -18 °C to 50 °C (-0.4 °F to 122 °F) |
| Without Batteries | -20 °C to 70 °C (-13 °F to 158 °F) |
| Relative Humidity | 0 % to 90 % (0 °C to 35 °C) |
| 0 % to 75 % (35 °C to 40 °C) | |
| 0 % to 45 % (40 °C to 50 °C) | |
| IP Rating | IP 54 |
| Drop Test | (1 M) 3.28 ft |
| Size (H x W x L) with Battery | 5.12 in x 3.58 in x 5.25 in (13 cm x 9.09 cm x 13.33 cm) |
| Weight with Battery | 1.76 lbs (0.8 kg) |
| Safety | IEC 61010-1: Pollution Degree 2 |
| Laser | IEC 60825-1:2014 Class 2 |
| Light Source | Semiconductor laser diode |
| Max Output Power | < 1 mW |
| Wavelength | |
| Red | 635 nm ± 10 nm |
| Electromagnetic compatibility (EMC) | |
| International | IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B |
| Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. | |
| Class B: Equipment is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes. | |
| Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object | |
| Korea (KCC) | Class B Equipment (Broadcast communications equipment for home) |
| USA (FCC) | 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. |
